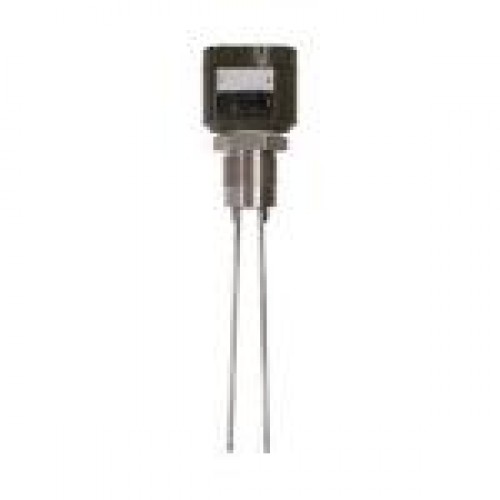

Báo Mức Chất Lỏng Dạng Rung-Vibrating Level Switch
- Nhà sản xuất: GENTEKELECTRONIC
- Dòng sản phẩm:
- Số lượng sản phẩm trong kho: 10
- Ứng dụng: Dùng báo mức chất lỏng trong ngành thực phẩm
Điện áp cung cấp: 15-35VDC
- Liên hệ
TECHNICAL FEATURES / ELECTRICAL DATA
|
Connection terminals |
Max. 2mm² (AWG 14) sectioned cable input. |
|
Signal delay |
1 sec max |
|
Sensitivity |
Adjustable |
|
Vibration frequency |
85Hz |
|
Power supply |
15..35V DC 3W |
|
Signal output |
Relays one change-over contact AC max. 250V, 2A, 500VA |
|
Indicating light |
Signal output and Diagnostic by built-in LEDs |
|
Protection class |
IP68 (cable cover fully closed, and by using a fitting 4 - 8mm thick and full-bored) |
TECHNICAL FEATURES / MECHANICAL DATA
|
Housing |
Cast aluminium enclosure IP68 |
|
Enclosure |
IP 67 or EN 60529 |
|
Screw Material |
Stainless Steel SS304 |
|
Screw size |
R 1½. Whitworth screw thread DIN 259 |
|
Fork Material |
Stainless Steel SS304 |
|
Surface treatment |
Electrostatic powder paint RAL6014 over Noncorrosive alodine coating |
|
Weight |
1,3 kg |
TECHNICAL FEATURES / OPERATING CONDITIONS
|
Ambient temp. (housing) |
-20°C.. +60°C |
|
Process temperature |
-20°C.. +100°C / -20°C.. +180°C Option |
|
Min. density |
20 g/l |
|
Grain size |
8mm Max. |
|
Mechanical load |
200N laterally (on oscillator rods) |
|
Max. mechanical torque |
200 Nm |
|
Max. Tensile force |
1kN |
|
Max process pressure |
20 bar |
